Detail:

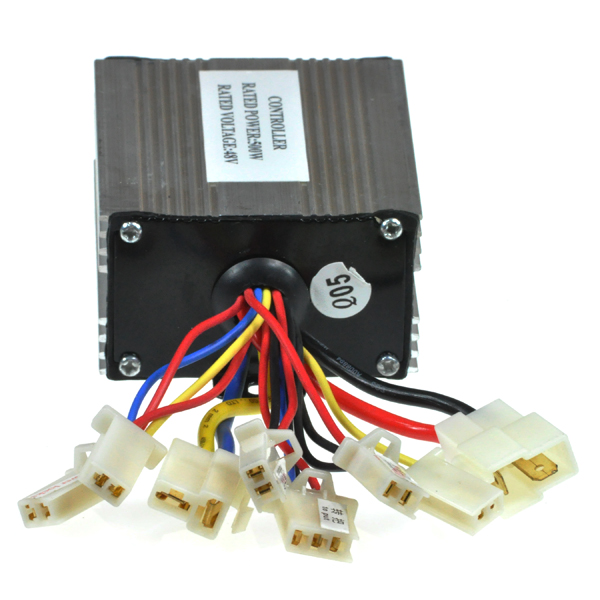

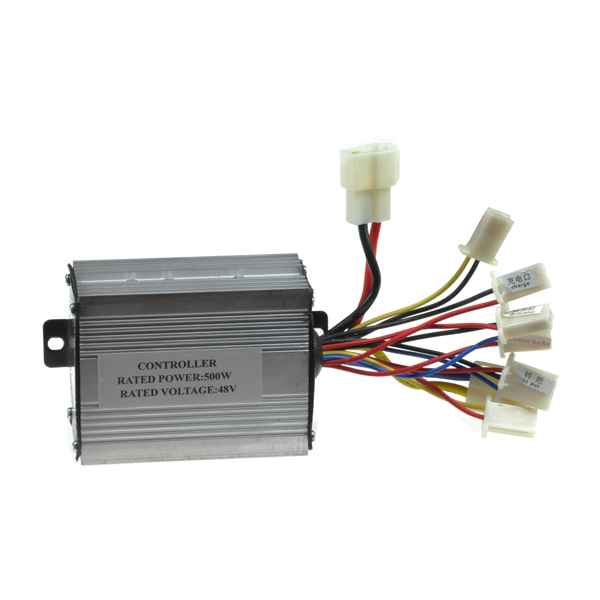

48 Volt voltage/speed controller for electric scooters, bikes, go karts, and mopeds. Eight connectors: motor, battery, indicator, to put, power locks, brake, brake signal, and charger.

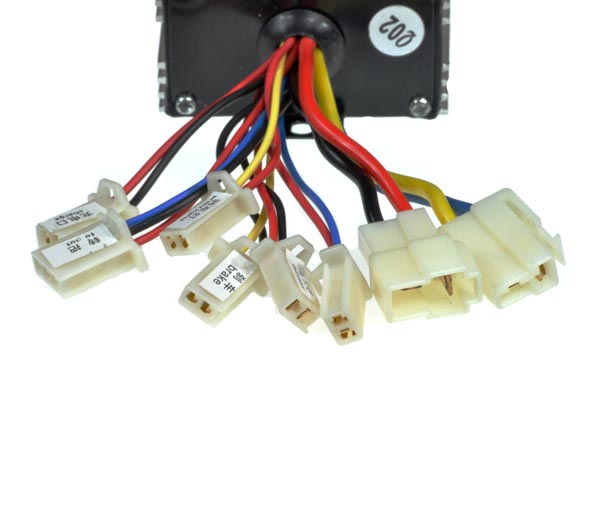

Controller connections as follows:
Battery Connector (Black & Red Wires, Thick)
Battery wiring. Black to Black, Red to Red.
Motor Connector (Blue & Yellow Wires, Thick)
Motor wiring. Blue (controller) to Blue (existing wiring), White (controller) to Yellow/White/Brown (existing wiring).
Indicator Connector (Black and Red Wires, Thin)
Battery charger connector. Black to Black, Red to Red.
To Put Connector (Red, Black, & Blue Wires, Thin)
Hand throttle connector, 3-wire. Plug your 3-wire hand throttle wires into the three prongs on this connector. Your product's throttle wiring may be included in an existing 6 pin connector on your wiring harness. Black to Black, Red to Red, Blue to the third wire on your hand throttle (Blue or Green or other).
Power Locks Connector (Blue & Red Wires, Thin)
Key switch connector. Connect to your product’s “lock” connector, or hard wire to your key switch wiring. Wire color connection not critical, but Blue to Blue, Red to Red if they match.
Brake Connector (Black & Yellow Wires, Thin)
Brake connector. Your product's brake wires may be included in an existing 6 pin connector on your wiring harness. Black to Black/Red and Yellow to Yellow.
Brake Signal Connector (Yellow & Red Wires, Thin)
Brake light connector (Yellow to Yellow/Black, Red to Red.
Charger connector (Black and Red Wires, Thin).
