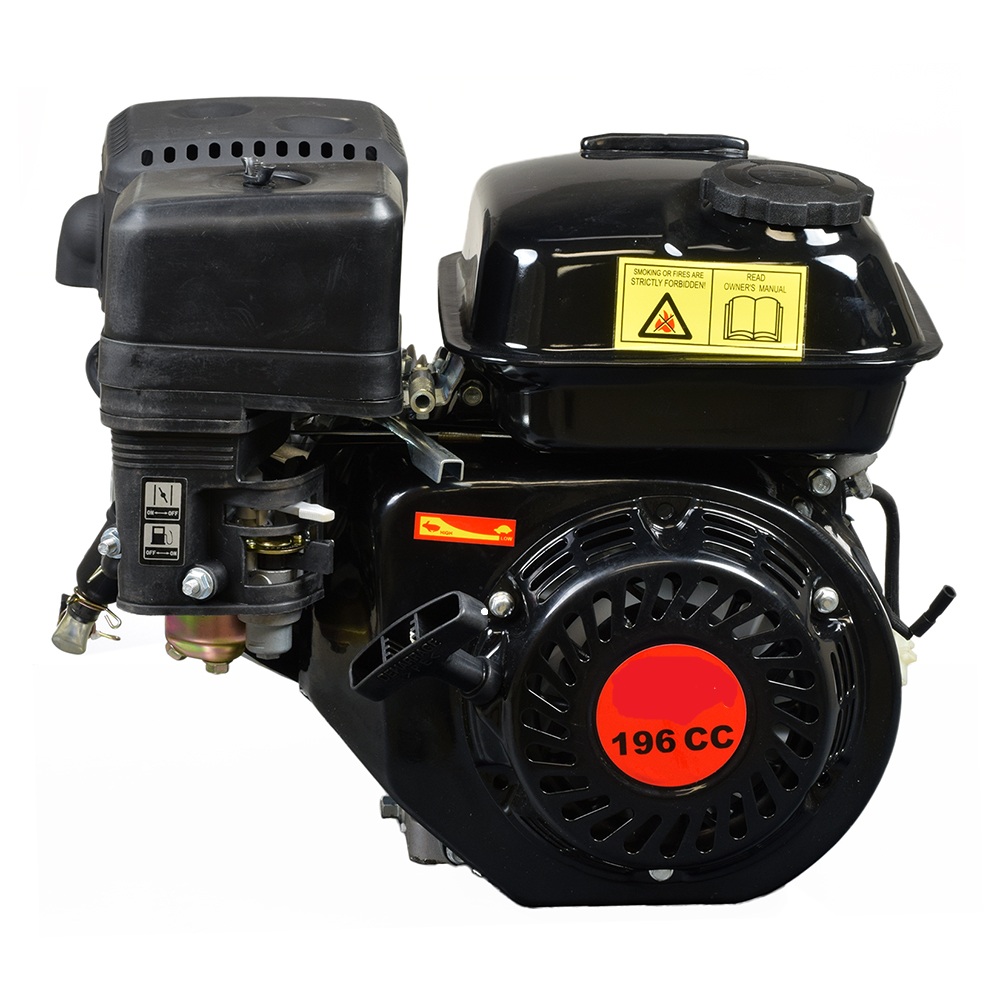

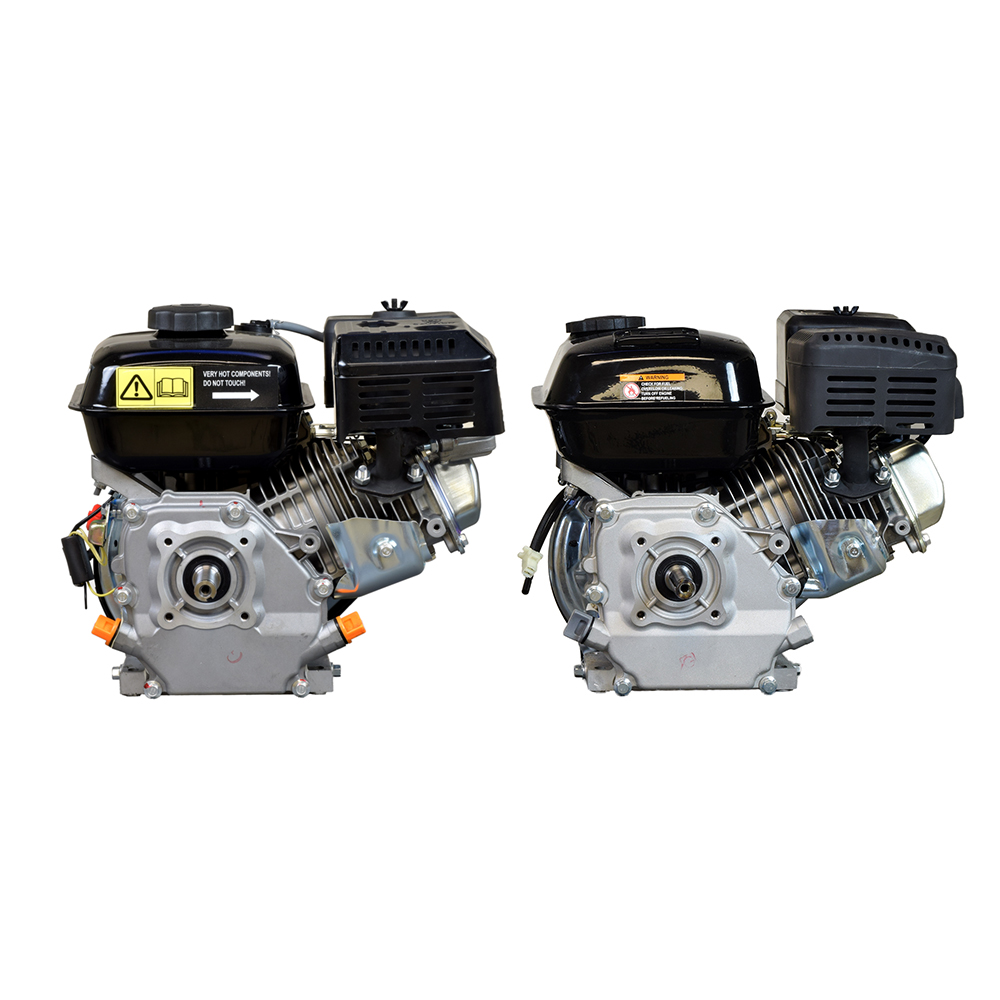

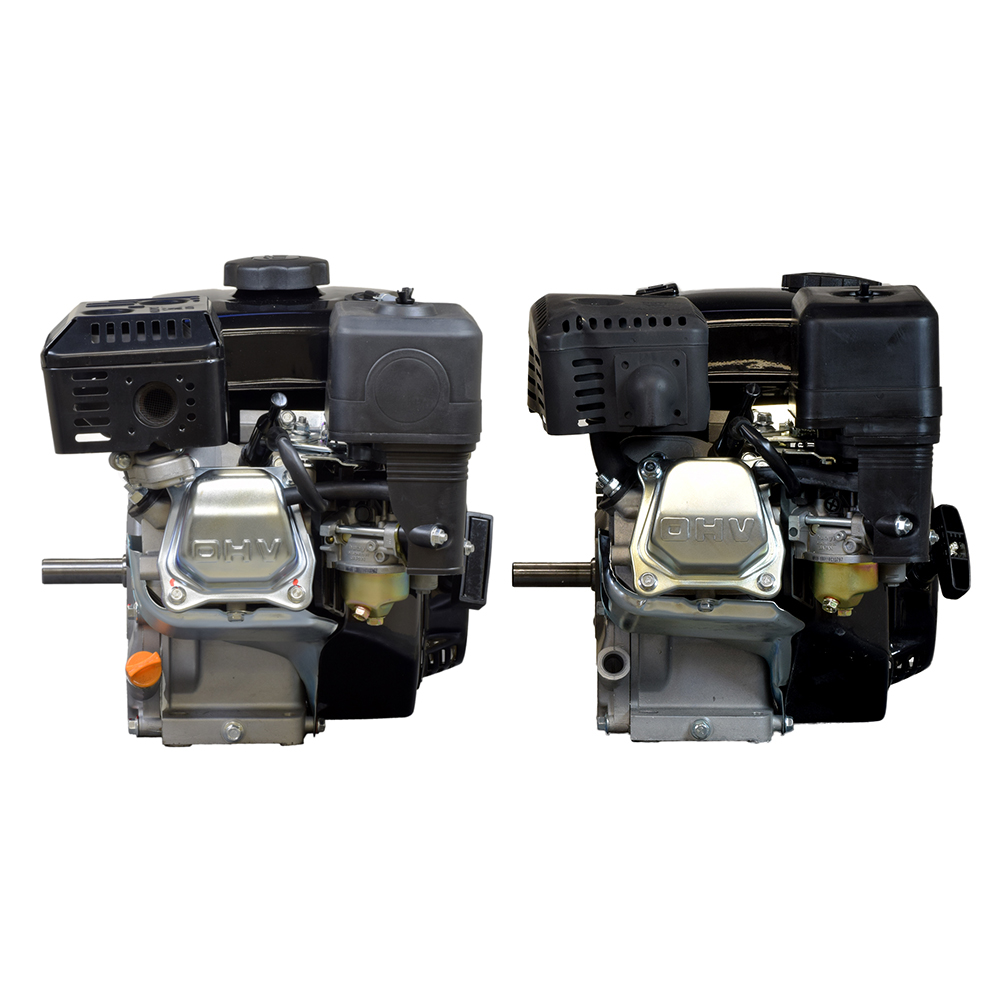

196cc 6.5 Hp Mini Bike Engine
Model: MGC15-0006
Detail:
Specifications
196cc Engine Specifications:
Baja Part Number: 165-043
Hensim Part Number: ABJMX 196MB1
Engine Type: Single cylinder air-cooled 4-stroke
Displacement: 196cc
Rated Power: 4.85KW/3600rpm (6.5 hp)
Max Torque: 9.76 ft-lbs/2500 rpm
Ignition System: Non-contact Transistorized Ignition (TCI)
Start Mode: Recoil pull start
Fuel Tank Capacity: 4.2 liters (1.11 gallons)
Fuel Type: 87 octane or higher
Engine Oil Capacity: 0.5 liters (0.53 quarts)
Engine Oil Type: SAE 15W50 API: SF
Bore: 68 mm
Stroke: 154.1 mm
Idle Speed: 1500 rpm +/- 150 rpm
Spark Plug: Meiya-F7RTC, Champion-CRN9YC, NGK-BPR6ES
Choke: Manual
Fuel Shutoff: Yes
PTO Shaft Rotation: Counter clockwise
Output Shaft Diameter: 3/4 inches
Output Shaft Length: 2-7/16 inches
Shaft Type: Keyed; Non-tapered
Dimensions (L X W X H (inches)): 15-1/4 x 12-1/4 x 13
Weight: 37-1/2 lbs
Shipping Weight: 39 lbs
Meets EPA 2010 off-road engine standards
212cc Engine Specifications:
Name: 212cc 6.5 Engine
Displacement: 212cc
Horsepower: 6.5
Engine cycle: 4-stroke
Weight: 37-1/2 lbs
Max RPM: 3600 RPM
Max torque: 8.1 ft. lbs. @ 2500 RPM
Shaft rotation: counter-clockwise
Starter: recoil pull start
Shaft diameter: 3/4"
Shaft length: 2-7/16"
Shaft height: 4.17"
Overall length:15.4"
Overall width: 12.6"
Overall height: 13.6"
Mounting pattern: 6.40" length x 2.95" to 3.17" width (162 mm x 75.5 mm to 80.5 mm)
Tank capacity: .9 gallons
Meets EPA 2010 off-road engine standards
California CARB compliant
