47cc, 49cc, 50cc, & 52cc Scooter & Pocket Bike Carburetor with 13 mm Intake

Model: MGC08-0003

Detail:

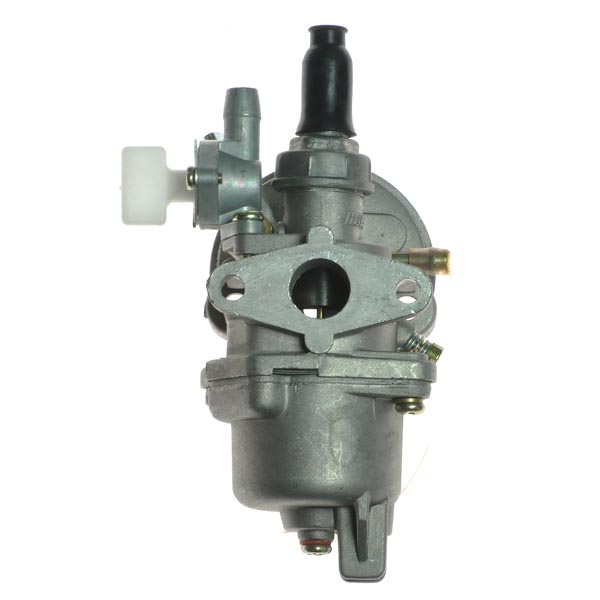

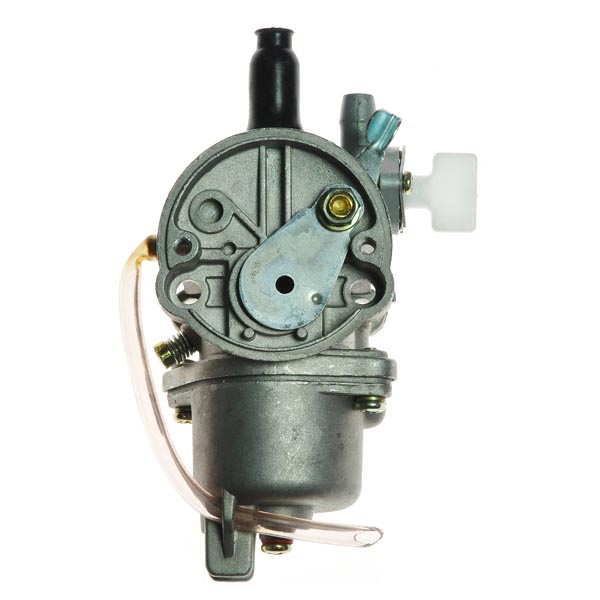

Pocket bike carburetor for 47cc, 49cc, 50cc, and 52cc scooters, pocket bikes, mini choppers, and go karts. Also compatible with some models of mini bikes and pit bikes.

This pocket bike carb has a fuel shut off valve and manual choke.



Specifications



  • Engine Size(s): 47cc; 49cc; 50cc; 52cc
  • Engine Intake Inner Diameter: 13 mm
  • Air Intake Outer Diameter: 20 mm
  • Air Intake Inner Diameter: 15 mm
  • Overall Depth: 4.7 cm
  • Overall Width: 5.2 cm
  • Overall Height: 12 cm
  • Center to Center Mounting Hole Distance: 40 mm
  • Mounting Holes Diameter: 6 mm
  • Choke: Manual
  • Choke Location: Right
  • Fuel Line Inner Diameter: 4 mm
  • Fuel Line Outer Diameter: 7 mm
  • Drain: Yes
  • Fuel Shutoff: Yes
