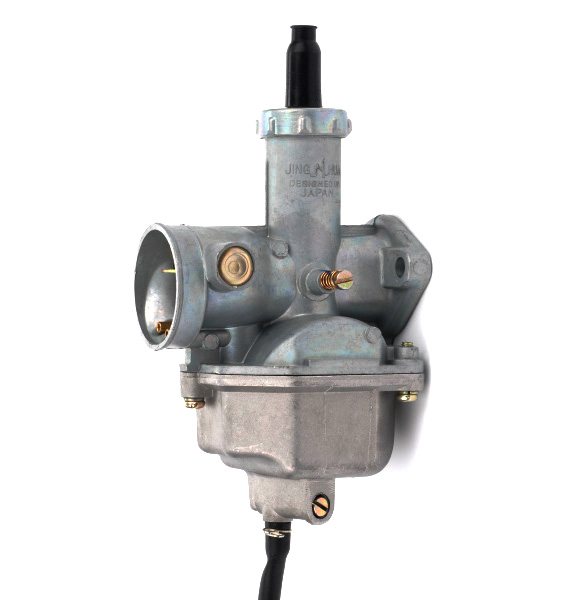

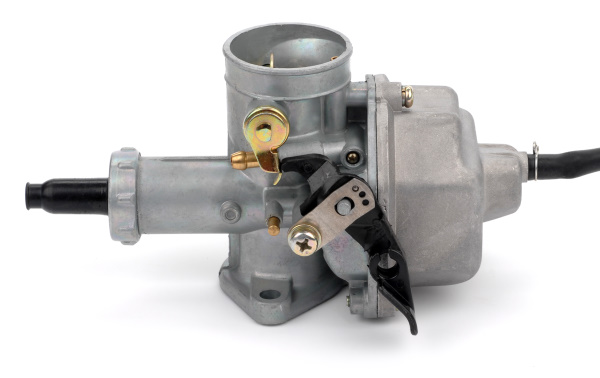

125cc - 150cc GY6 Scooter, ATV, & Dirt Bike Carburetor with 26 mm Intake and Left Side Choke

Model: MGC08-0012

Detail:

4-stroke scooter carburetor for "Honda Style" gas engines with a 26 mm diameter engine-side opening.



Specifications

  • Engine Size(s): 125cc; 150cc
  • Engine Intake Inner Diameter: 26 mm
  • Engine Intake Outer Diameter: 34 mm
  • Air Intake Outer Diameter: 39 mm
  • Air Intake Inner Diameter: 35 mm
  • Overall Depth: 8 cm
  • Overall Width: 9 cm
  • Overall Height: 17.5 cm
  • Center to Center Mounting Hole Distance: 48 mm
  • Mounting Holes Diameter: 6 mm
  • Choke: Manual
  • Choke Location: Left
  • Vacuum Hose Length: 30 cm
  • Vacuum Hose Inner Diameter: 4 mm
  • Vacuum Hose Outer Diameter: 8 mm
  • Drain: Yes
  • Drain Location: Bowl Bottom
  • Fuel Shutoff: No
