Carburetors

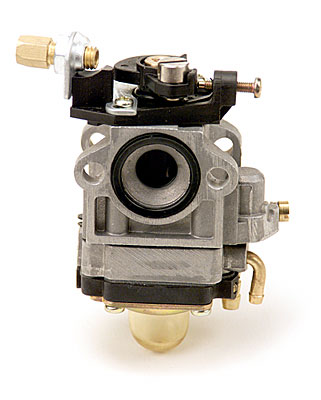

Scooter Carburetor with 11 mm Intake
Model: MGC08-0002
Detail:
Carburetor used as standard on 36cc 2-stroke engines. Can be used on all size 33cc and above 2-stroke scooter engines.
The 11 mm and 15 mm carburetors are completely interchangeable with the 15 mm carburetor giving you a little more power compared to the 11 mm carb.
Specifications
Venturi Diameter: 11 mm (0.43")
Mounting Hole Distance: 31 mm (appr. 1.25")
Engine Size(s): 33cc; 36cc; 41.5cc; 43cc
Engine Intake Inner Diameter: 11 mm
Air Intake Inner Diameter: 15 mm
Overall Depth: 3 cm
Overall Width: 7 cm
Overall Height: 9 cm
Center to Center Mounting Hole Distance: 32 mm
Mounting Holes Diameter: 6 mm
Choke: Manual
Primer Bulb: Yes
Fuel Line Inner Diameter: 3 mm
Fuel Line Outer Diameter: 4 mm
Drain: No
Fuel Shutoff: No
