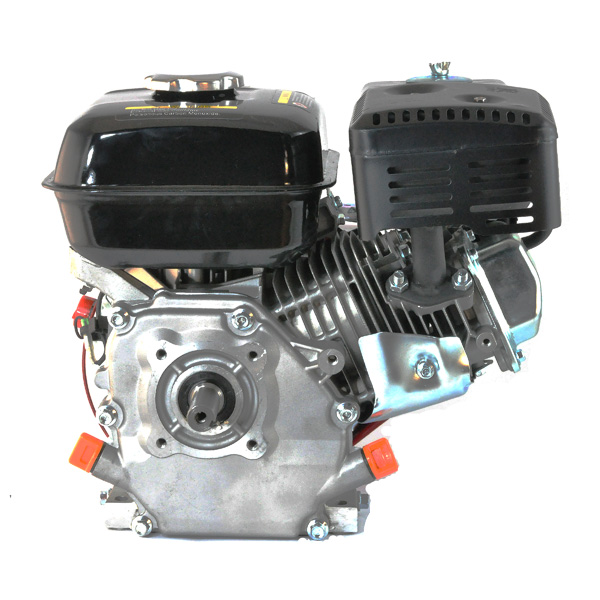

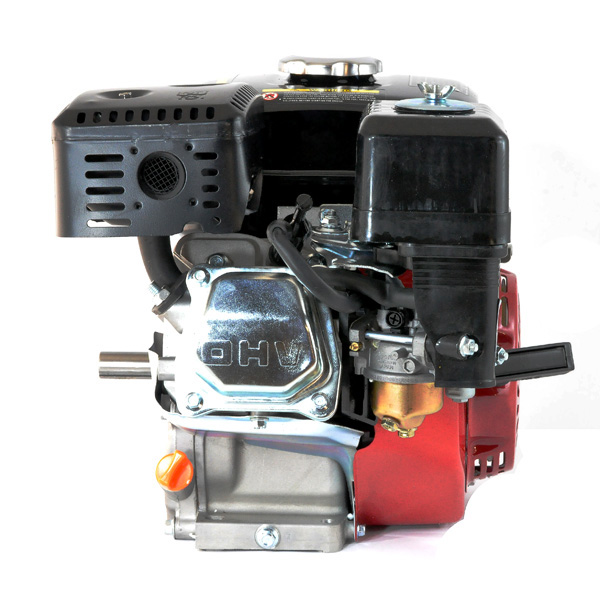

196cc 6.5 Hp Honda Clone (GX200 168F) Go Kart & Mini Bike Engine with 20mm Output Shaft

Model: MGC15-0005

Detail:

Specifications

  • Engine Type: Single cylinder air-cooled 4-stroke
  • Manufacturer: Hejun
  • Model: 168FB
  • Displacement: 196cc
  • Rated Power: 4.2KW/3600rpm (6.5 hp)
  • Max Torque: 11.5 ft-lbs/2500 rpm
  • Ignition System: Non-contact Transistorized Ignition (TCI)
  • Start Mode: Recoil pull start
  • Fuel Tank Capacity: 4.2 liters (1.11 gallons)
  • Fuel Type: 87 octane or higher
  • Engine Oil Capacity: 0.5 liters (0.53 quarts)
  • Engine Oil Type: SAE 15W50 API: SF
  • Bore: 68 mm
  • Stroke: 154.1 mm
  • Idle Speed: 1500 rpm +/- 150 rpm
  • Spark Plug: Meiya-F7RTC, Champion-CRN9YC, NGK-BPR6ES
  • Choke: Manual
  • Fuel Shutoff: Yes
  • PTO Shaft Rotation: Counter clockwise
  • Output Shaft Diameter: 20 mm
  • Output Shaft Length: 50 mm
  • Shaft Type: Keyed; Non-tapered
  • Dimensions (L X W X H (inches)): 15-1/4 x 12-1/4 x 13
  • Weight: 34 lbs
  • Shipping Weight: 38.25 lbs
  • Meets EPA 2010 off-road engine standards
  • Meets EPA EVAP standards
